Description
ASRock Phantom Gaming X870E Nova WIFI supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors and supports up to 8200MHz Memory.
Features:
Phantom Gaming X870E Nova WiFi
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 20+2+1 Phase Power Design, 110A SPS for VCore+SOC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8200+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4),1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3 - 2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 5 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 (3 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front)
- 5Gbps LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
PHANTOM GAMING X870E Nova WiFi
Nova is the most significant energy discharge ever witnessed by mankind, it’s super-powerful which represents the performance our motherboard can deliver.
FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.
Specifications:
| Model Name | X870E Nova WiFi |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB – 20+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming – 5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer |
| CPU | – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | – AMD X870E |
| Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)* – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
| LAN | – 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s – Realtek RTL8126 |
| Wireless LAN | – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 160MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode* – 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode* – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* – 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: – 2 x SATA3 6.0 Gb/s Connectors |
| RAID | – Supports RAID 0 and RAID 1 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | CPU: – 2 x USB4 Type-C (Rear) – 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7)) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56)) – 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) – 6 x USB 2.0 (2 Rear, 4 Front) |
| Connector | – 3 x Thermistor Cable Headers – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** – 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED |

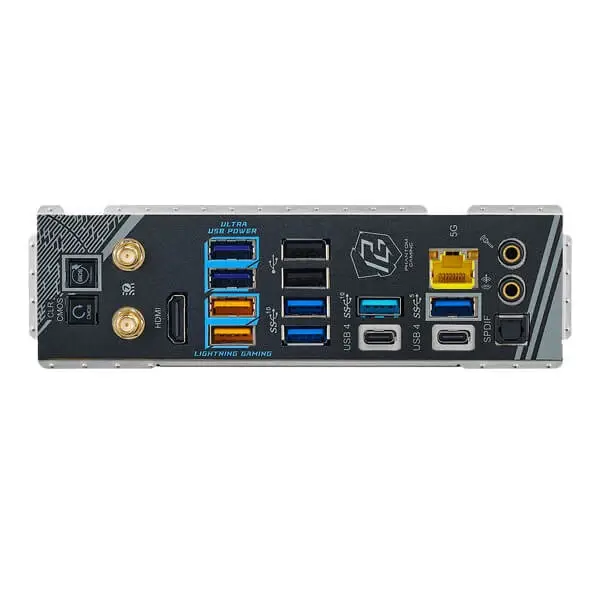

| Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x USB4 Type-C Ports (40 Gb/s)* – 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) – 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x Clear CMOS Button – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Phantom Gaming LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
| Accessories | – 4 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 1 x ARGB Splitter Cable – 3 x Thermistor Cables |
| Form Factor | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 8 Layer PCB – 2oz Copper PCB |
| OS | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
