Description
DeepCool CH160 Mesh is a Small Form Factor Ultra-Portable High Airflow M-Itx Case. It Can support up to 172mm Height CPU Air Cooler, up to 305mm GPU Length, The Internal Layout Provides a Lot of Flexibility for Drives and PSU Options
Features:
The CH160 MESH is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The new mesh configuration allows option to now add in a 240mm AIO. The internal layout provides a lot of flexibility for drives and PSU options.
HIGH AIRFLOW PANELS
Mesh panels surround the CH160 MESH from numerous sides and create a high-airflow, small-form-factor case like no other.
FULL SIZED AIR COOLING!
Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 MESH can support giant air coolers up to 172mm in height!
SUPPORTS 240MM AIO!
The full mesh panel layout offers a new configuration support with a 240mm AIO.
NO ADDED GPU LATENCY!
Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX (140) / SFX, or SFX-L power supplies. GPU Length Limit: 230mm / 305mm
QUALITY OF LIFE IMPROVEMENTS

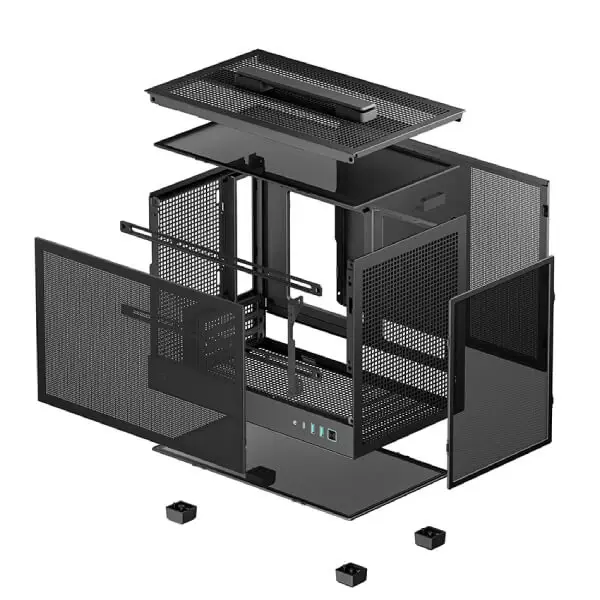

Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 MESH makes everything a little easier.
Specification:
| Model | CH160 MESH |
| P/N | R-CH160-BKNMI0-G-1 |
| Product Dimensions | 336×200×283.5mm(L×W×H) |
| Net Weight | 3.1Kg |
| Materials | ABS+PVC+SPCC |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB3.0×2、Audio×1、Gen2 Type-C×1 |
| 3.5″ Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| 2.5″ Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support |
|
| Radiator Support | Side：240mm |
| CPU Cooler Height Limit | 172mm |
| GPU Size Limit |
|
| Power Supply Type | ATX PS2（maximum length: 140mm）/ SFX / SFX-L |
| Warranty | 1 Year |
| Note | ***Features, Price, Specifications are subject to change without notice. ***Image used for representation purposes only |
