Description

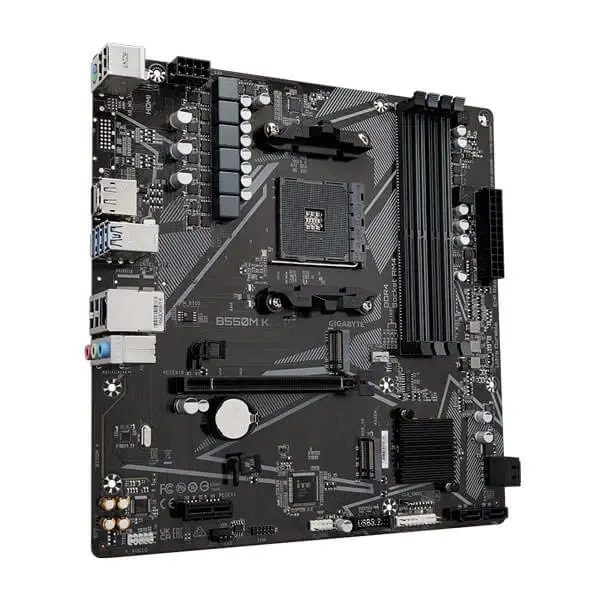

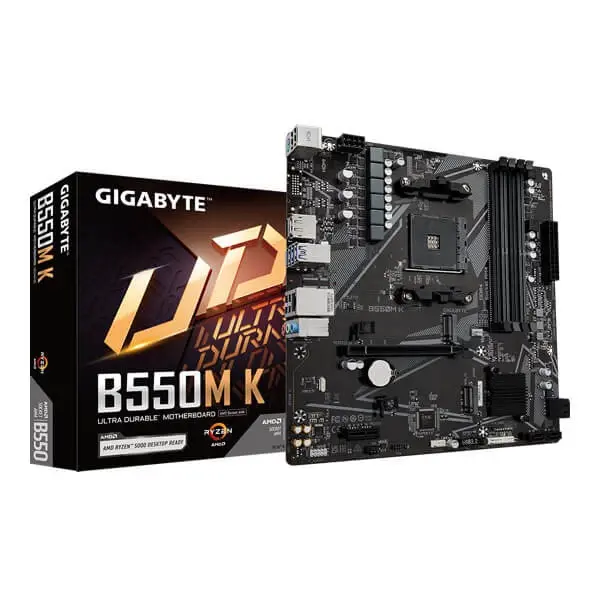

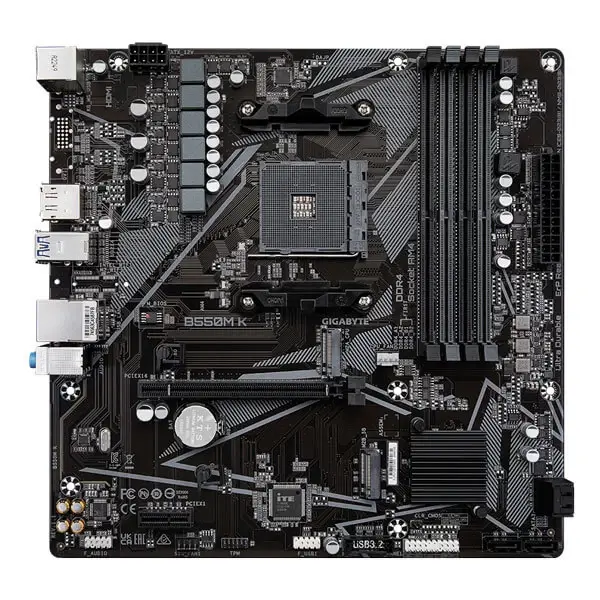

Gigabyte B550M K Motherboard Supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors. It also supporting up to 128 GB of system memory.
Features:
AMD B550 Ultra Durable Motherboard with Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 5 with FAN STOP
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
The Industry’s Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
Specifications:
Model Number | B550M K |
CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors |
Chipset | AMD B550 |
Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode* Actual support may vary by AMD CPU’s specification. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode 1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: Supporting PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
USB | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |

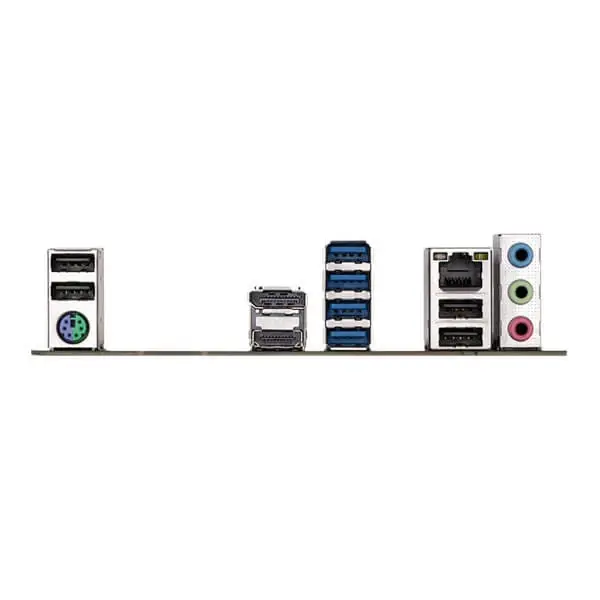

Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x DisplayPort1 x HDMI port4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control |
BIOS | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash |
Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
