Description

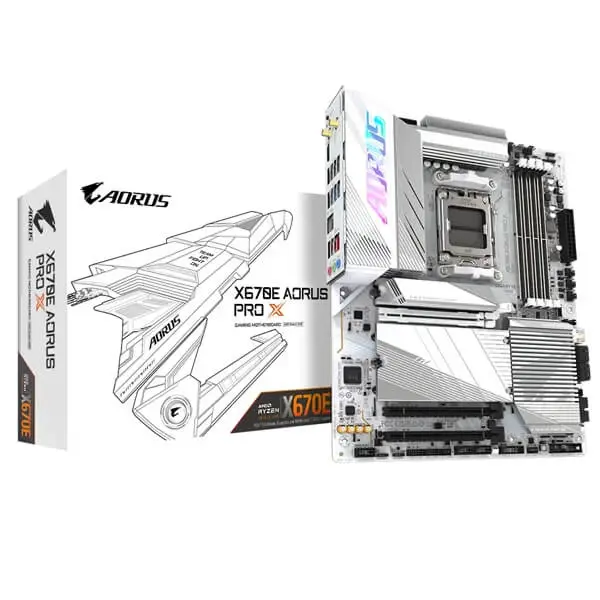

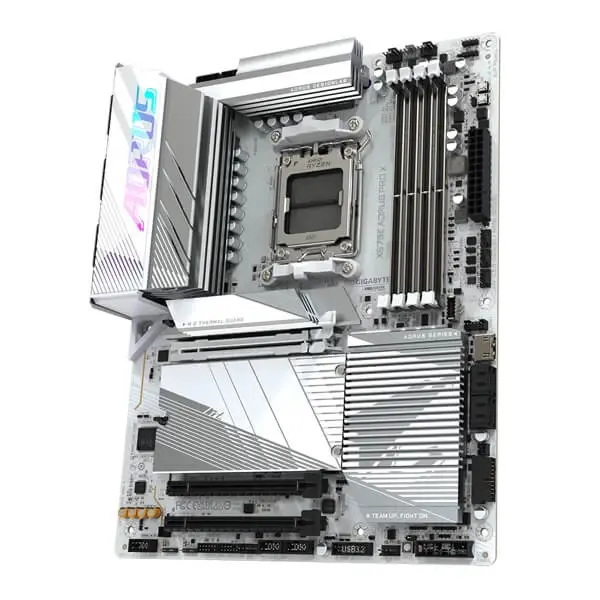

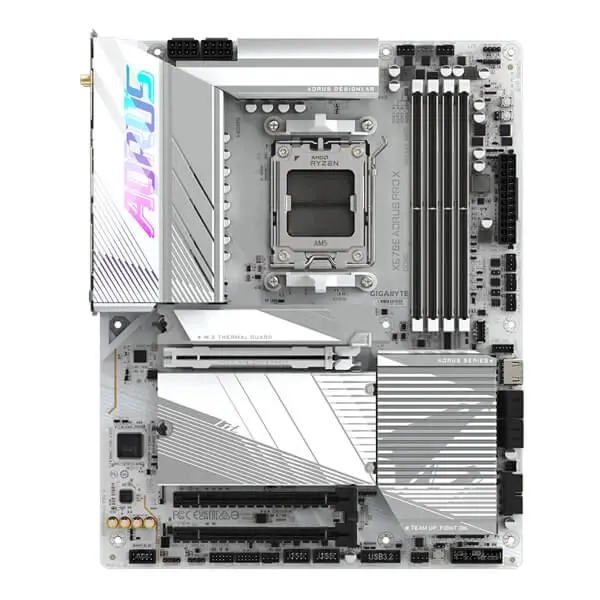

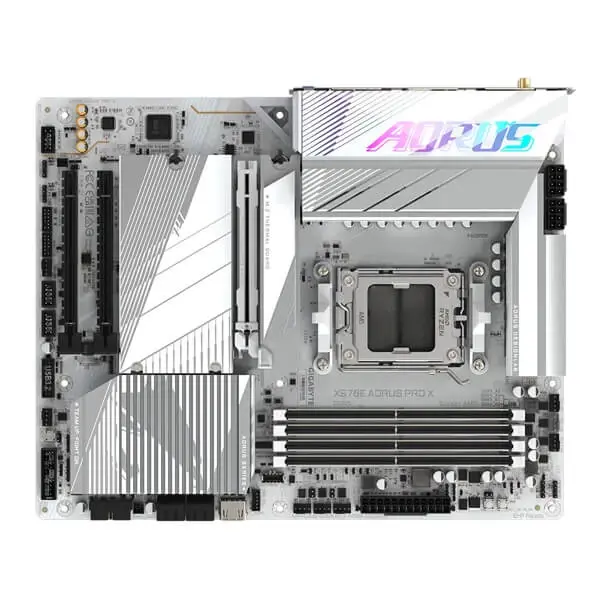

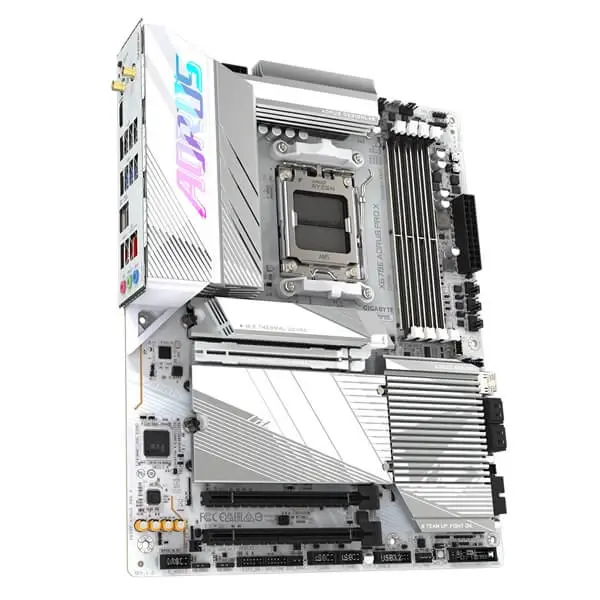

Gigabyte X670E Aorus Pro X motherboard supports AMD Ryzen 7000 Series, Ryzen 8000, Ryzen 9000 Series Processors and Support for DDR5 8000MHz memory. Including 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna for fast network
Features:
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup - UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：4*M.2 slots, including 2* PCIe 5.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity：HDMI, Rear & Front USB-C® 20Gb/s
- Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors
Power in number
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.
BIOS Engineering
Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.
Shielded Memory Routing
Memory routing is shielded within the PCB’s inner layer to protect against interference.
Get everythingUD
GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger.
Specifications:
| Model Name | X670E AORUS PRO X |
| CPU | AMD Socket AM5, support for:AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Chipset | AMD X670 |
| Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and ExtremeMemory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.* Support for native HDMI 2.1 TMDS compatible ports.- 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz* Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0/1.2) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs- AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs Chipset:- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)(M2C_SB, M2D_SB)- 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU:- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 2 x USB 3.2 Gen 1 ports on the back panelCPU + USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the backpanel, 1 port available through the internal USB header)- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available throughthe internal USB headers)- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 2 x temperature sensor headers 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x HDMI port* * Only available with the AMD Radeon™ Graphics Processors. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |

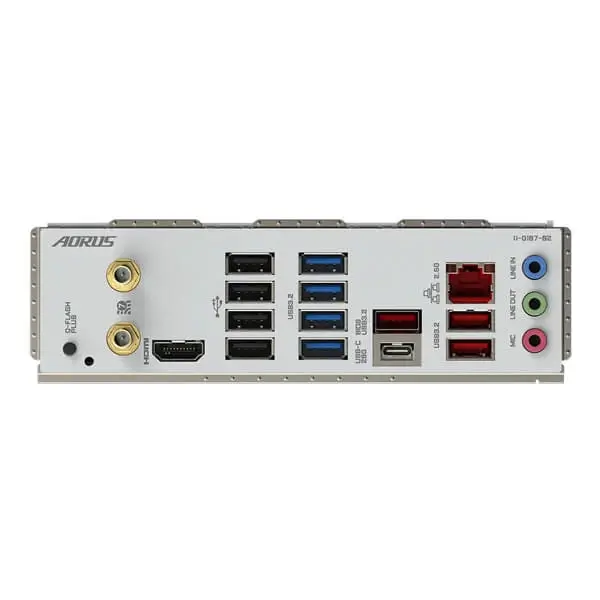

| Back Panel Connectors | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed controlNoise detection |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
