Gigabyte X870E Aorus Pro Ice AM5 ATX Motherboard

₹36,849.00

Inclusive of all taxes

Description

AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000/ 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click：M.2 heatsinks with screwless design
Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
Chipset	AMD X870E
Memory	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module	Qualcomm® Wi-Fi 7 QCNCM865 – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
Expansion Slots	1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU+ASMedia USB4® controller: – 2 x USB4® USB Type-C® ports on the back panel CPU: – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper

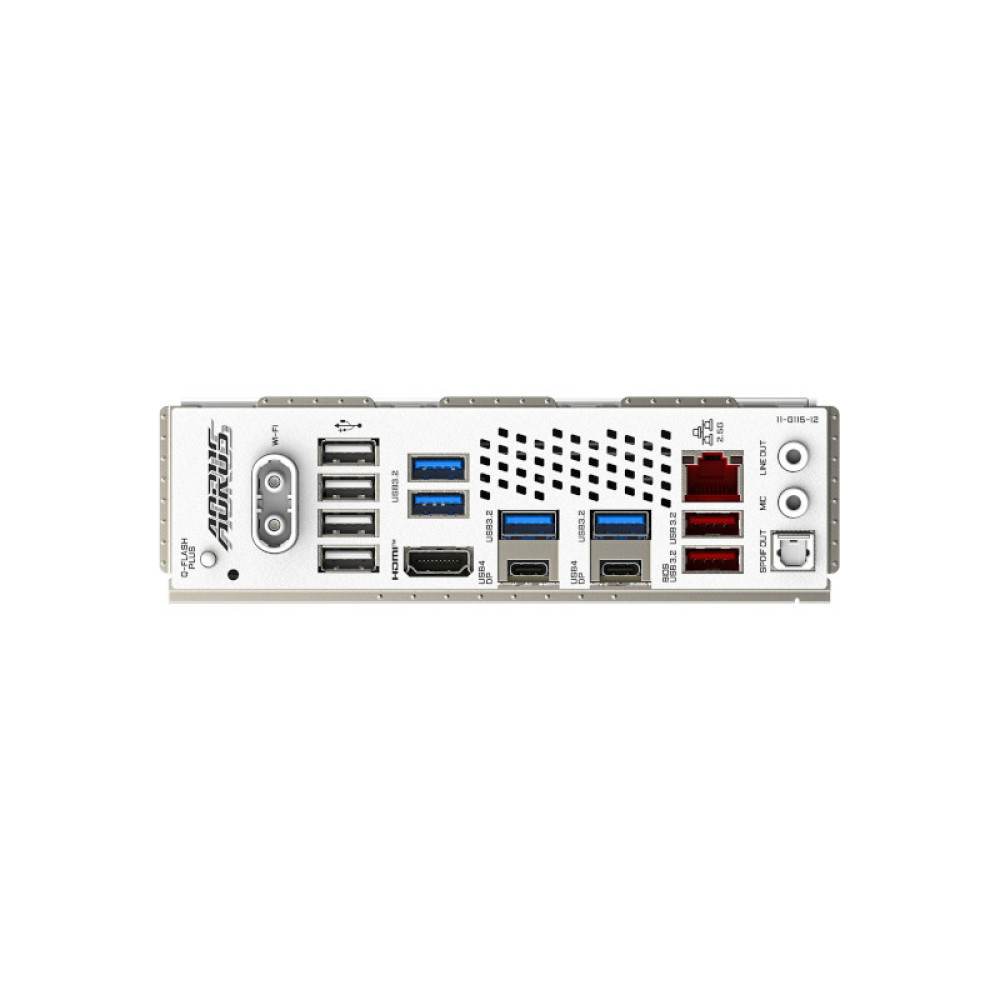

Back Panel Ports	1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 2 x USB4® USB Type-C® port (DisplayPort (Note)) 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Feature	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note**	**Prices, Specifications & Features are subject to change without notice

Additional information

Brand	GIGABYTE
Motherboard–Form–Factor	ATX
