Description

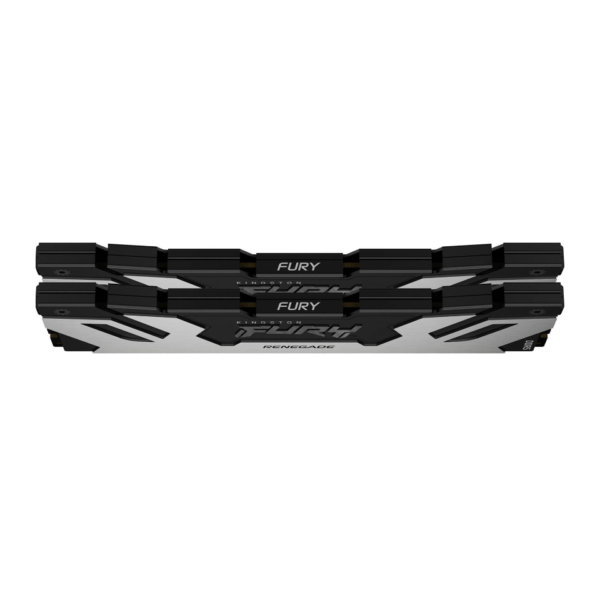

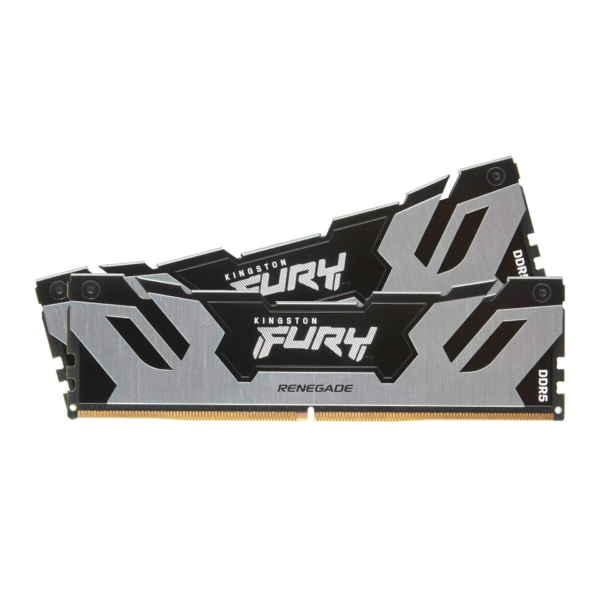

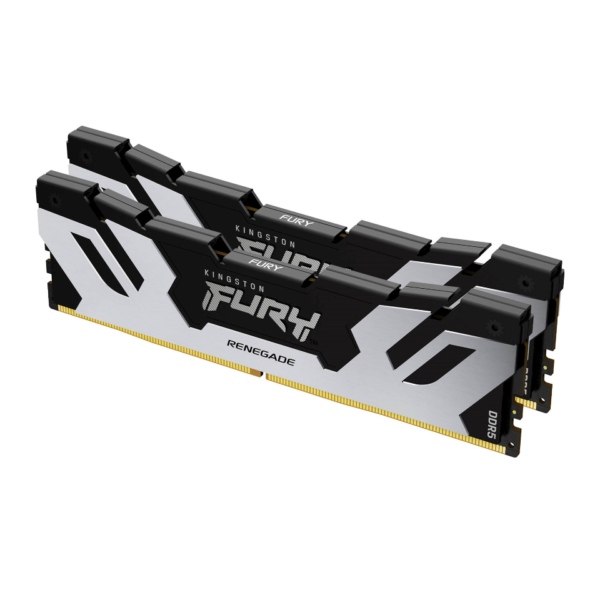

Kingston Fury Renegade 32gb KF560C32RSK2-32 is a kit of two 2G x 64-bit (32GB) DDR5-6000 CL32 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per
module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 32-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
| CL(IDD) | 40 Cycles |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V – 0 |
| Operating Temperature | 0o C to +85o C |
| Storage Temperature | -55o C to +100o C |
| Power Supply | VDD = 1.1V Typical |
| VDDQ | 1.1V Typical |
| VPP | 1.8V Typical |
| VDDSPD | 1.8V Typical |
| ECC | On Die ECC |
| Height | 1.54” (39.2mm), w/heatsink |
| Warranty | Limited Lifetime |
| Note** | **Prices, Specifications & Features are subject to change without notice |
