₹8,400.00
Inclusive of all taxes
/11-320-058/2.jpeg)

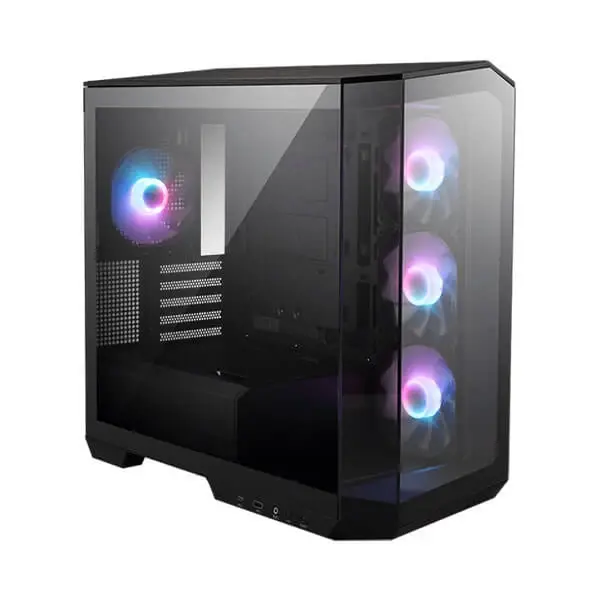

The MSI MAG PANO M100R PZ comes with a 270-degree tempered glass panel paired with a Back-connect motherboard compatible, adding to the aesthetically pleasing and cleanliness of your PC build while enhancing its overall aesthetics and organization. MAG PANO M100R PZ offers spectacular ambient illumination with 3 x 120 mm Reverse-blade ARGB PWM intake fans and 1 x 120 mm ARGB PWM exhaust fan pre-installed.
/11-320-058/3.jpeg)
Supporting Back-connect motherboards not only simplifies the installation process but also makes cable management easier. Additionally, it prevents interfering with cables in front of the motherboard, keeping the interior of the case a lot cleaner.
The Velcro straps help to tie the cables easily.
/11-320-058/4.jpeg)
Motherboard support: Micro-ATX (Back-connect and regular motherboard compatible) and Mini-ITX (regular motherboard compatible).
/11-320-058/5.jpeg)
The MAG PANO M100R PZ comes pre-installed with 3 x 120 mm Reverse-blade ARGB PWM fans and 1 x 120 mm ARGB PWM fan, other fan cooling options include:
/11-320-058/6.jpeg)
The pre-installed 1-to-4 ARGB-PWM control board supports extra ARGB fan connections to the case. It supports intuitive control & lighting profiles through the LED switch button, and is also compatible with the Mystic Light utility via MSI motherboards.
1. 3-pin ARGB connector
2. 4-pin PWM connector
/11-320-058/7.jpeg)
This case features a 270-degree reinforced glass design, providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.
/11-320-058/8.jpeg)
33 mm cable routing space & pre-installed cable Velcro strips for easy cable management.
/11-320-058/9.jpeg)
The tool-free top removable design ensures effortless installation, while the bottom of this case features a magnetic dust filter for easy removal and cleaning.
/11-320-058/10.jpeg)
Features:
Specification:
| Model | MAG PANO M100R PZ |
| Color | Black |
| Case Form Factor | Micro- ATX Tower |
| Motherboard Form Factor Support | M-ATX(Back-connect supported) / ITX |
| I/O Ports |
|
| Drive Mount Support |
(up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
| Expansion Slots | 5 |
| Maximum GPU Length | 390 mm / 15.35 inches *Support horizontal installation only |
| Maximum CPU Cooler Height | 175 mm / 6.9 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support |
|
| Pre-installed Fan Size |
|
| Pre-installed Fan Type |
|
| Radiator Size Support |
|
| Dimensions (DxWxH) | 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches |
| Connection |
|
| Cooling Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Brand | |
|---|---|
| Cabinet- Cooler Size | 360mm |
| Cabinet -Form Factor | M-ATX |
| Cabinet- LED Fan | ARGB |
| Cabinet MB Size Support | Micro ATX, Mini ITX |
| Cabinet Size | Mid-Tower |
