NOCTUA NH-U9S CHROMAX BLACK 92mm CPU AIR COOLER

5,425.00

SKU: NH-U9S-CHROMAX-BLACK

h

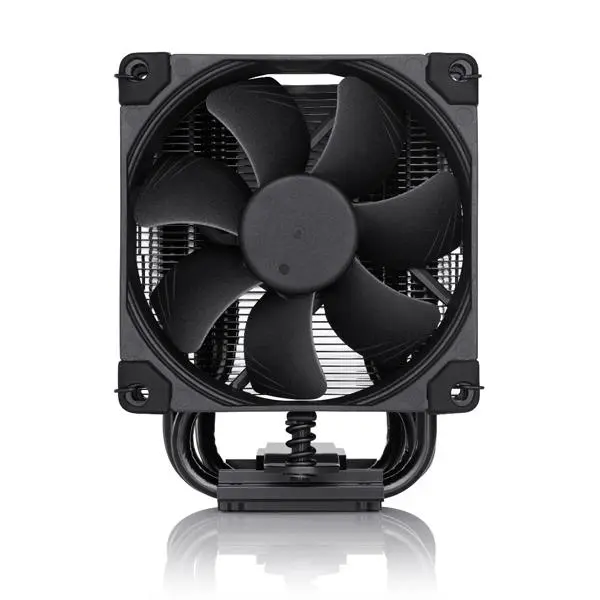

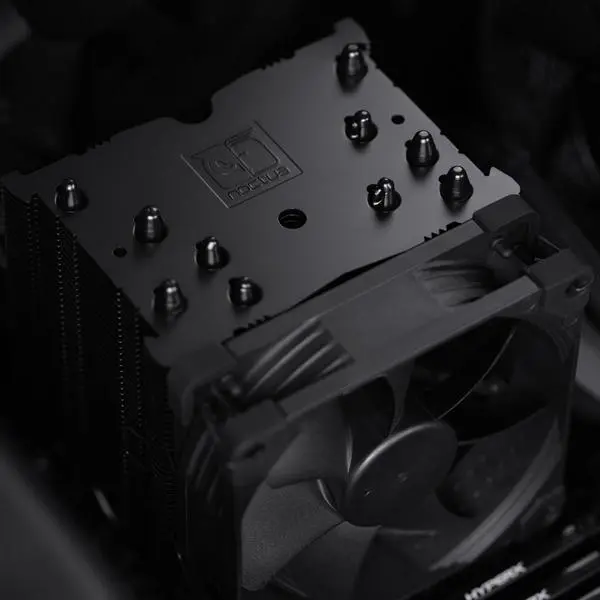

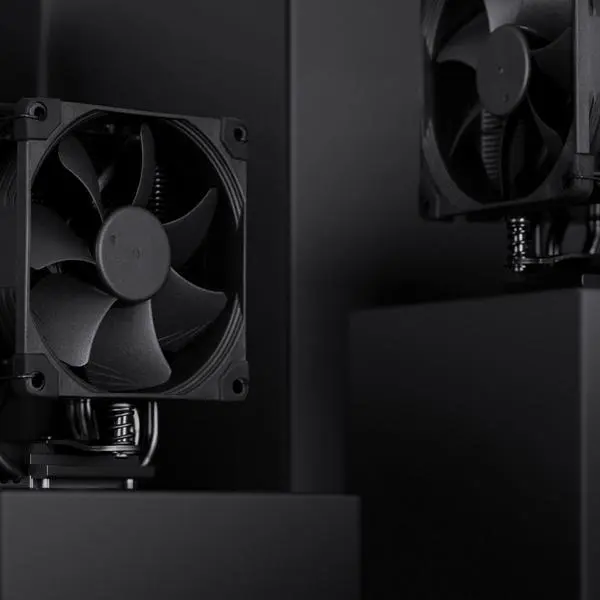

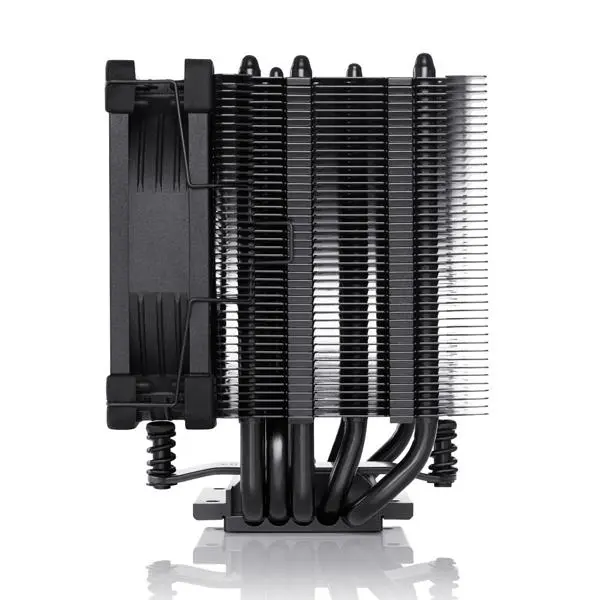

The NH-U9S chromax.black is an all-black version of Noctua’s award-winning NH-U9S premium-quality quiet CPU cooler. Thanks to the same proven compact 92mm tower heatsink design and NF-A9 PWM fan, it stays true to the NH-U9S’s successful formula of fusing strong cooling performance with excellent quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 multi-socket mounting system and Noctua’s enthusiast-grade NT-H1 thermal compound, the NH-U9S chromax.black is a premium choice for customers who seek a compact, highly compatible 92mm heatsink that looks just as great as it cools.

h
g
h

Specifications

Socket compatibility Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200 LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4
Height (without fan) 125 mm
Width (without fan) 95 mm
Depth (without fan) 68 mm
Weight(without fan) 865 g
Height (with fan) 125 mm
Width (with fan) 95 mm
Depth (with fan) 95 mm
Weight (with fan) 618 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility 92x92x25

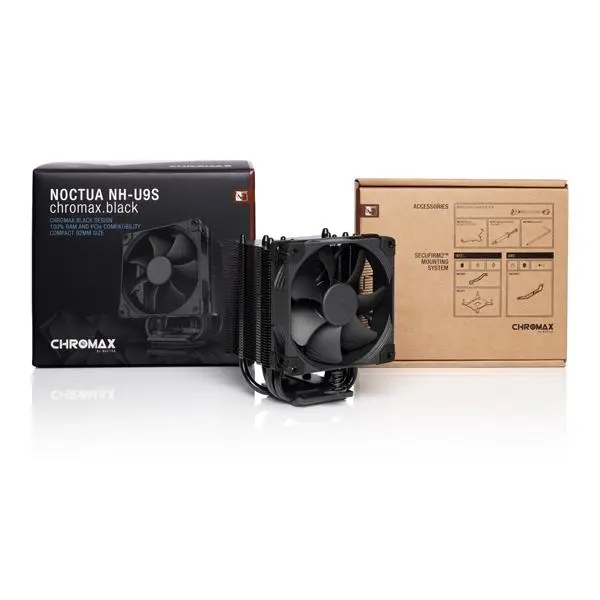

Scope of delivery
  • Black NH-U9S heatsink
  • NF-A9 PWM chromax.black premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A)
  • NT-H1 high-grade thermal compound
  • Black SecuFirm2™ mounting kit
  • Black fan-clips for second NF-A9
  • Noctua Metal Case-Badge
Fan Specifications
  • Model Noctua NF-A9 PWM chromax.black
  • Bearing SSO2
  • Max. rotational speed (+/- 10%) 2000 RPM
  • Max. rotational speed with L.N.A. (+/- 10%) 1550 RPM
  • Min. rotational speed (PWM, +/-20%) 400 RPM
  • Max. airflow 78,9 m³/h
  • Max. airflow with L.N.A. 62,6 m³/h
  • Max. acoustical noise 22,8 dB(A)
  • Max. acoustical noise with L.N.A. 16,3 dB(A)
  • Input power 1,2 W
  • Voltage range 12 V
  • MTTF > 150.000 h
Warranty 6 Years
Note *** Features, Price, Specifications are subject to change without notice.
