Description
Specification :
| Product name | AI edge computer |
|---|---|
| AI Performance | 275 TOPS |
| GPU | 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores |
| GPU Max Frequency | 1.3 GHz |
| CPU | 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| CPU Max Frequency | 2.2 GHz |
| DL Accelerator | 2x NVDLA v2 |
| DLA Max Frequency | 1.6 GHz |
| Vision Accelerator | 1x PVA v2 |
| Memory | 64GB 256-bit LPDDR5 204.8GB/s |
| Storage | 64GB eMMC 5.1 |
| Video Encode | 2x 4K60 (H.265) 4x 4K30 (H.265) 8x 1080p60 (H.265) 16x 1080p30 (H.265) |
| Video Decode | 1x 8K30 (H.265) 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 22x 1080p30 (H.265) |
| CSI Camera | 16-lane MIPI CSI-2 connector |
| PCIe | x16 PCIe slot supporting x8 PCIe Gen4 M.2 Key M slot with x4 PCIe Gen4 M.2 Key E slot with x1 PCIe Gen4 |
| USB | USB Type-C connector: 2x USB 3.2 Gen2 USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 USB Micro-B connector: USB 2.0 |
| Networking | RJ45 connector with up to 10 GbE |
| Display | 1x DisplayPort 1.4a (+MST) connector |
| Other I/O | 40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC batter backup connector microSD slot DC power jack Power, Force Recovery, and Reset buttons |
| Power | 15W – 60W |
| Diamensions | 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
| Shipment Weight | 0.7 kg |
| Shipment Dimensions | 15 × 10 × 10 cm |
| Shipping Weight | 0.7 kg |
| Shipping Dimensions | 15 × 10 × 10 cm |
Overview:
NVIDIA Jetson AGX Orin 64GB Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing. All in an easy-to-use platform that runs in as little as 5 watts.
8x AI performance: a giant leap forward for Edge AI compare to Jetson AGX Xavier
The newest member of Jetson Family, NVIDIA Jetson AGX Orin 64GB, provides a giant leap forward for Robotics and Edge AI. With up to 275 TOPS of AI performance and power configurable between 15W and 50W, you now have more than 6X the performance of NVIDIA Jetson AGX Xavier in the same compact form-factor for developing advanced robots and other autonomous machine products.
For next-gen autonomous machines
With 275 TOPS AI processing power on the developer kit, developers can deploy machine learning models in solving demanding challenges for advanced robotics and autonomous machines in the fields of manufacturing, logistics, retail, service, agriculture, smart city, and healthcare Jetson platform is the ideal solution.
With Jetson AGX Orin, developers can now deploy large and complex models to solve problems such as natural language understanding, 3D perception, and multi-sensor fusion.
Get started with Jetson Software with all you need ML tools
Jetpack 5.0
Jetpack 5.0 provides the software to power the Jetson AGX Orin and future Jetson modules, as well as existing Jetson modules based on the NVIDIA Xavier SoC. Jetpack 5.0 includes L4T with Linux kernel 5.10 and a reference file system based on Ubuntu 20.04. Jetpack 5.0 enables a full compute stack update with CUDA 11.x and new versions of cuDNN and Tensor RT. It will include UEFI as a CPU bootloader and will also bring support for OP-TEE as a trusted execution environment. Finally, there will be an update to DLA support for NVDLA 2.0, as well as a VPI update to support the next generation PVA v2.
Jetson software includes The platform includes Jetson modules, which are small form-factor, high-performance computers, the JetPack SDK for end-to-end AI pipeline acceleration, and an ecosystem with sensors, SDKs, services, and products to speed up development.
Jetson Software comprises JetPack SDK, TAO & Pretrained AI Models from the NVIDIA NGC catalog, Triton Inference Server, NVIDIA Riva, Deep Stream SDK, and NVIDIA Isaac.
NVIDIA JetPack includes NVIDIA Container Runtime with Docker integration, enabling GPU accelerated containerized applications on Jetson platform. Jetpack also brings support for NVIDIA Triton Inference Server to simplify the deployment of AI models at scale
Features:
- Most powerful AI computer for energy-efficient autonomous machines: up to 275 TOPS, power configurable between 15W and 60W, supports multiple concurrent AI inference pipelines, plus high-speed interface support for multiple sensors.
- Giant Leap forward compared to Jetson AGX Xavier: 8 times AI performance in the same compact form-factor, built with new NVIDIA Ampere architecture with 2048 NVIDIA CUDA cores and 64 tensor cores, 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2+6MB L3
- Supports multiple concurrent AI inference pipelines with onboard 64GB eMMC, 204 GB/s of memory bandwidth, and 64 GB of DRAM.
- High-speed interface support for multiple sensors: 22 lanes of PCIe Gen4, 1x 10GbE, a Display Port, 16 lanes of MIPI CSI-2, USB 3.2 interfaces, and a 40-pin header.
- Support JetPack SDK NVIDIA Developer installs Ubuntu 20.04 and supports entire NVIDIA JetPack and use-case-specific software platforms including Isaac for robotics, and Metropolis for smart cities.

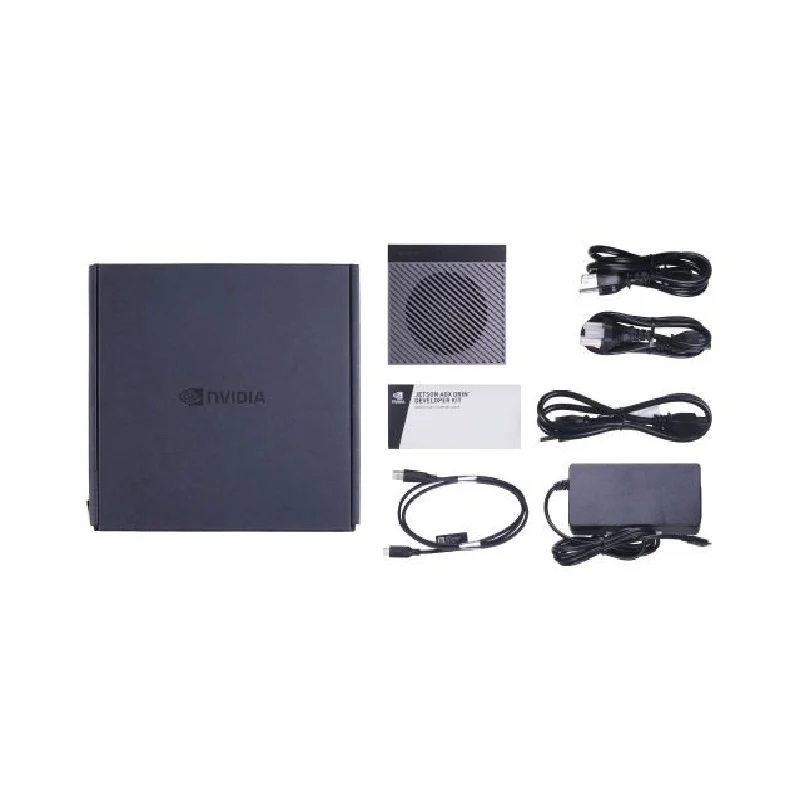

Package Includes:
1 x NVIDIA Jetson AGX Orin 64GB Developer Kit smallest and most powerful AI edge computer
