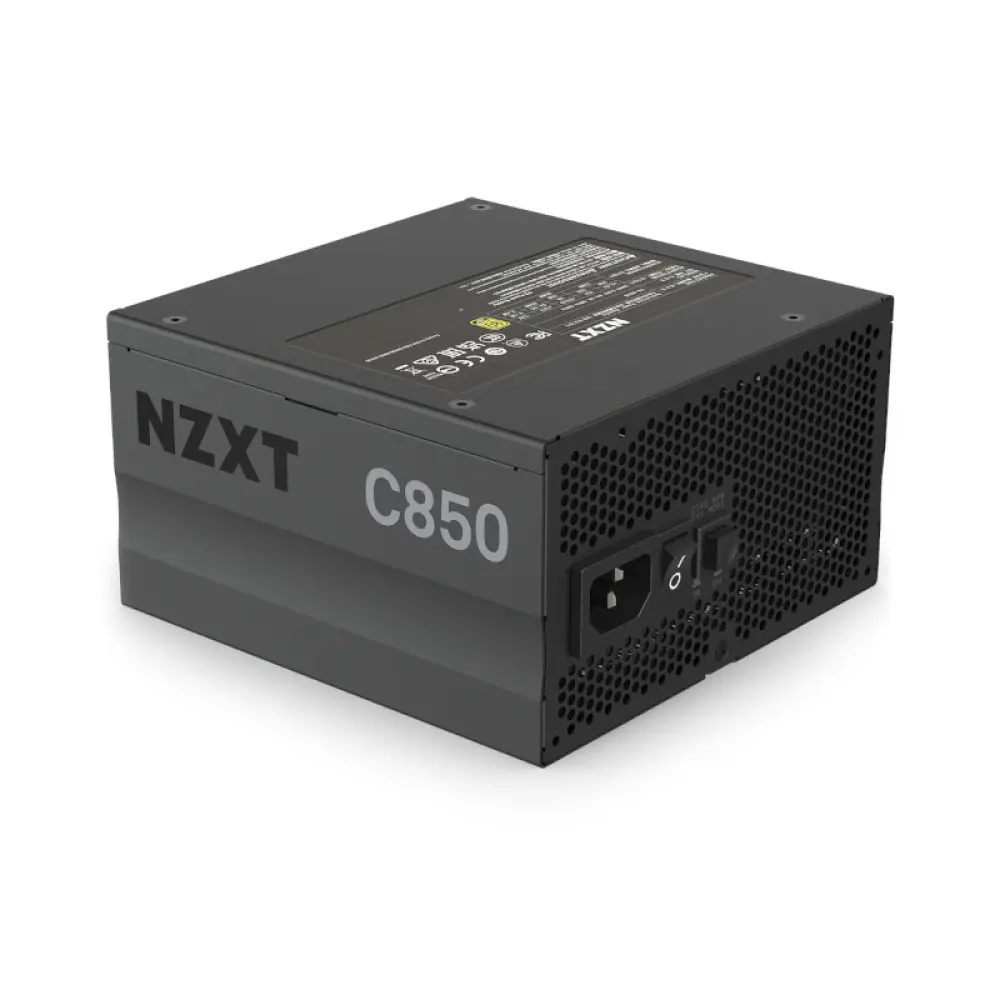

Description
This PSU delivers 850 watts of clean, stable power which is ideal for gaming PCs with multiple GPUs, or higher power requirements. It is also useful for SLI or Crossfire builds.
- Modular design lets builders use only the cables they need
- The sleeved main cables lresist heat damage as well as fraying
- Fits any case conforming to the ATX standard
- Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6900 XT
- Zero RPM Fan mode silences the fan under low-load conditions

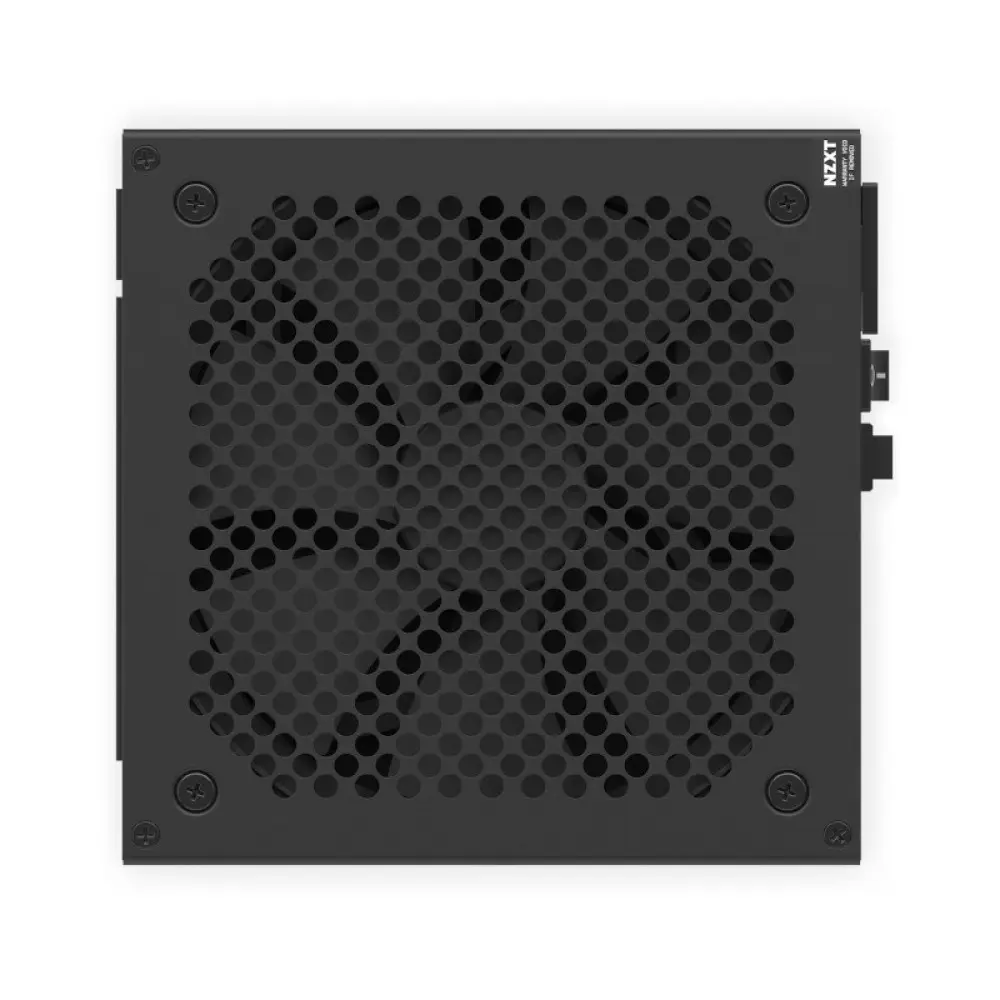

- Dynamic 120mm fluid-dynamic bearing fan
- 10-year warranty
| Specification | |

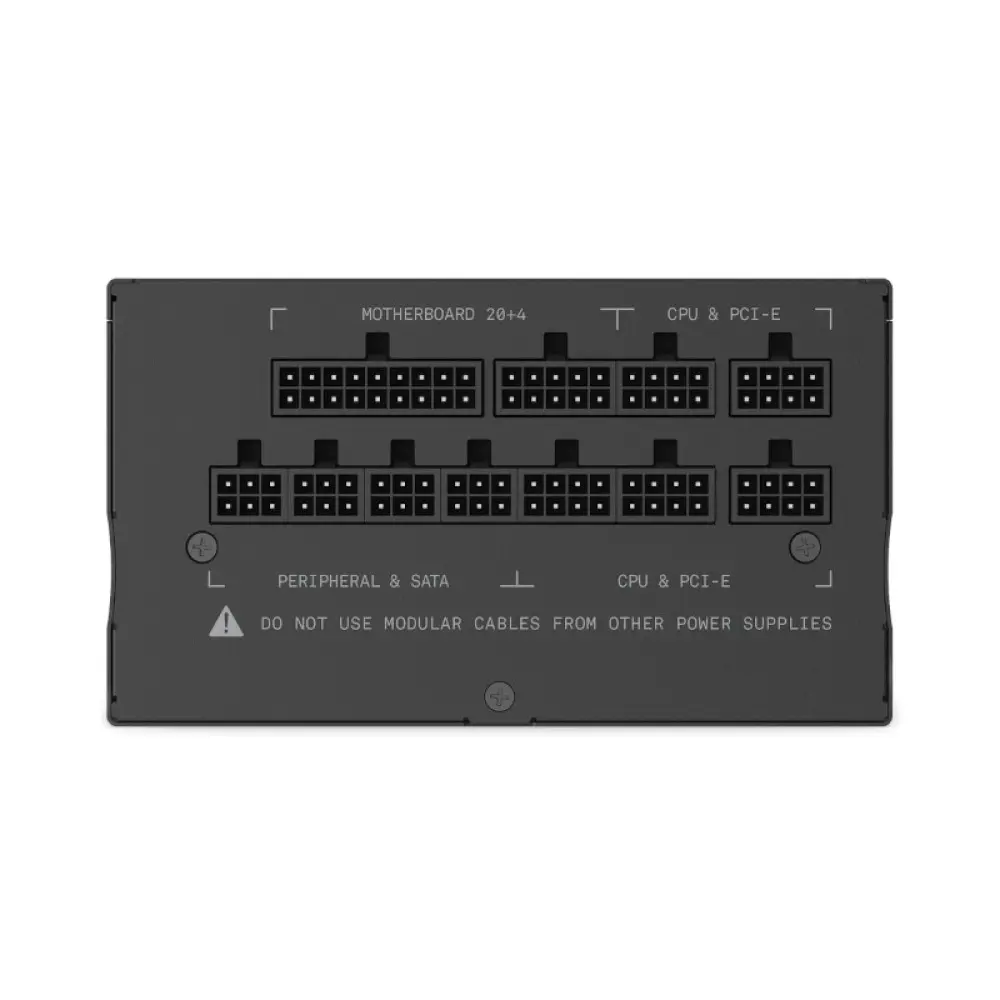

| OUTPUT CONNECTORS | 24-pin ATX power: 1 4+4-pin CPU power: 2 6+2-pin PCIe power: 6 SATA power: 6 Peripherals: 6 |
| CABLE SPECS | 24-pin ATX power: 600 mm, Nylon sleeving 4+4-pin CPU power: 700 mm, Nylon sleeving 6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving SATA power: 500 + 150 mm Peripherals: 500 + 150 mm |
| AC INPUT RATING | 100 – 240Vac: 10A-5A 50Hz-60Hz |
| DC OUTPUT RATING | +3.3V and +5V: 22A (120W) +12V: 70.8A (850W) -12V: 0.3A (3.6W) 5Vsb: 3A (15W) Total: 850W |
| OPERATION | PF Correction: Active @0.96 MTBF:100,000 hours Temperature: 0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C) |
| ENERGY EFFICIENCY | Rating: 80 Plus Gold 20% loading: 87% @115Vac 50% loading: 90.5% @115Vac 100% loading: 87.5% @115Vac |
| Fan Specs | Dimensions: 135 x 135 x 25 mm Speed: 0-2300 ± 10% RPM Airflow: 93.02 CFM (Tpy.) Noise: 44.5 dBA max Bearing: Fluid Dynamic Bearing (FDB) |
| GENERAL | Dimensions: 150 x 150 x 86mm Material(s): Steel, PCB and Plastic Compliance Standard: ATX12V v2.52 / EPS12V v2.92 Regulation & Certification: cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA Model Number: PA-8G1BB-IN |
| Warranty | 10 years |
| Note* | Price, feature and specifications are subject to change without notice. |
