Description
Thermaltake The Tower 600 is a versatile ATX case designed for high-performance PC builds. It supports hidden-connector motherboards, up to 420mm AIO radiator and up to thirteen 120mm fans or nine 140mm fans
Features:
The Tower 600 is an ATX case with a classic vertical case design and comes in an octagonal prism shape that is compatible with the latest hidden-connector motherboards. It supports up to a 420mm AIO radiator on the right side and a 360mm AIO radiator on the left side, and it can accommodate up to thirteen 120mm fans or nine 140mm fans. With a separately sold Chassis Stand Kit, users can enjoy a unique view with a special horizontal placement.
Unlock Your True Potential
Being the new mid tower chassis of The Tower Series, The Tower 600 is an ATX case with a classic vertical case design and comes in an octagonal prism shape that is compatible with the latest hidden-connector motherboards. It supports up to a 420mm AIO radiator on the right side and a 360mm AIO radiator on the left side, and it can accommodate up to thirteen 120mm fans or nine 140mm fans. If you want to make The Tower 600 more visually appealing, you can purchase the separately sold 3.9″ LCD Screen Kit and Chassis Stand Kit to upgrade the build; the former to display real-time component information and the latter for a unique view with a special horizontal placement. With its unique design and ample space, The Tower 600 is ready to unlock the full potential of your configuration.
Classic Vertical Body Design
The Tower 600 retains the iconic contours of its predecessors with a vertical body design, but in an octagonal prism shape that provides flexibility and minimizes obstructions to your gaming and workspace.
A Unique View – Horizontal Case Placement
With the optional chassis stand kit, which includes a bottom cover panel and a display stand for horizontal case placement, The Tower 600 allows for easy customization of the case for a unique viewing experience.
How to install:
- Unscrew the original feet located on the base of the chassis
- Install the new bottom cover of the chassis and carefully place The Tower 600 on the stand
*Note: It is recommended to position the radiator higher than the AIO pump.
Compatible with Hidden-Connector Motherboards
Created for next-generation motherboards, The Tower 600 features a special design that enables support for both standard motherboards and hidden-connector motherboards. Moreover, there are two removable panels on the both left and right sides of the rear side for easy access to cable routing.
*Compatible with hidden-connector
motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
Supports up to a 420mm Radiator on the Right and a 360mm Radiator on the Left
The Tower 600 provides excellent cooling by supporting up to a 420mm radiator on the right side and a 360mm radiator on the left side, effectively reducing the temperature inside the chassis and maintaining optimal system performance.
Display It Your Way
Rotating PCI-E slots allow you to mount your graphics card in a variety of ways. Two additional GPU brackets provide additional support for your GPU and riser cables. (Riser cable sold separately)

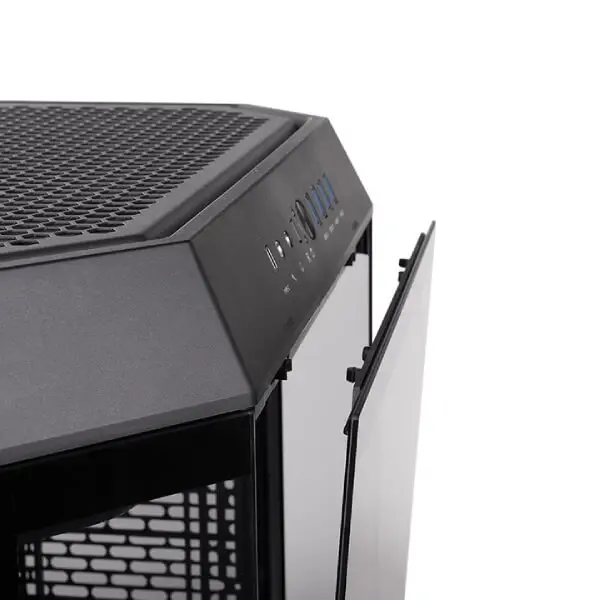

Tool Free Panels for Easy Access
The Tower 600 features three 3mm tempered glass panels on the front and two perforated panels on each side. All are easily removable without tools.
Two CT140 PC Cooling Fans Pre-installed
The Tower 600 features two 140mm PWM fans on the top to provide good cooling performance.
Choose The Way You Install
Featuring the brackets on the top, left and right side, The Tower 600 has the capacity to support up to a 420mm AIO radiator on the right side and a 360mm AIO radiator on the left side, and it can accommodate up to thirteen 120mm fans or nine 140mm fans. Installation is a breeze thanks to the removable fan bracket that simplifies the process.
Air Intake and Exhaust
Featuring a vertical chassis design, The Tower 600 still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.
We’ve Tested Everything, So You Don’t Have To
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The Tower 600 products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
Massive Airflow & Incredible Performance
Thermal images were taken during thermal testing. Thanks to two CT140 PC Cooling Fans pre-installed, we were able to ensure that The Tower 600 has massive airflow, which ensures amazing cooling performance and a low internal temperature while using the most upscale components.
Perfect Dust Protection
The Tower 600 has well-designed filters on the top, rear, inner sides, and inner bottom layer to protect the system from dust.
Excellent Hardware Support and Cooling Solution
The Tower 600 offers excellent hardware support. It can support a CPU cooler with a maximum height of 210mm, a GPU with a maximum length of 400mm (without power cover), a power supply with a length of up to 220mm, three 2.5‘’ SSDs or a total of one 3.5‘’ HDD. Two CT140 fans are pre-installed on the top of the case to improve thermal efficiency. Additionally, three 120mm or two 140mm fans can be installed on top, and up to thirteen 120mm fans or nine 140mm fans can be placed in total. It also supports up to one 420mm AIO radiator on the right side and one 360mm AIO radiator on the left side of the chassis for maximum cooling performance.
How Much Storage Is Totally up to You
For the storage compatibility, The Tower 600 can fit one 3.5” hard drives or up to three 2.5” hard drives.
Optimal Cable Management
The Tower 600 provides effective cable management with its spacious space and two sets of cable clips in the rear chamber, plus Velcro straps and cable ties in the accessory box for a neat and organized setup.
Handy I/O Ports
Top-located I/O ports consist of following functions:
- Power Button with Integrated Power LED (White)
- HDD LED (Red)
- USB 3.0 Type-A x 4
- USB 3.2 Gen 2 Type-C x 1
- HD Audio
- Reset Button
DMD: Dismantlable Modular Design
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Specification:
| Model Name | The Tower 600 Black |
| Model Part Number | CA-1Z1-00M1WN-00 |
| Series | The Tower |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 550 x 420 x 286.4 mm (21.65 x 16.54 x 11.28 inch) |
| Net Weight | 9.70 kg / 21.39 lbs. |
| Panel | 3mm Tempered Glass x 3 |
| Color | Black |
| Material | SPCC |
| Cooling System | Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 |
| Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top:
Right:
Left:
Rear:
Power Cover:
Bottom:
|
| Radiator Support | Right Side(AIO):
Left Side(AIO):
|
| Clearance |
|
| Warranty | 3 Years |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
