Transcend 512GB M.2 SATA Internal Solid State Drive | SATA III MTS830 6Gb/s 80mm SSD

8,700.00

SKU: TS512GMTS830S

Specifications

Appearance

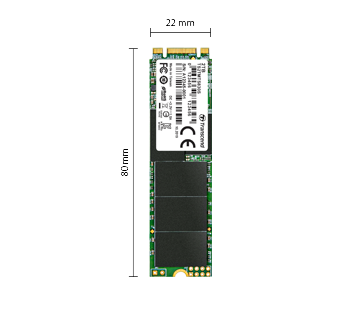

Dimensions 80.0 mm x 22.0 mm x 3.58 mm (3.15″ x 0.87″ x 0.14″)
Weight 9 g (0.32 oz)
Type
  • M.2 2280

Interface

Bus Interface
  • SATA III 6Gb/s

Storage

Flash Type
  • 3D NAND flash
Capacity
  • 128 GB/
  • 256 GB/
  • 512 GB/
  • 1 TB/
  • 2 TB

Operating Environment

Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
  • 3.3V±5%

Performance

Sequential Read/Write (CrystalDiskMark)
  • 2 TB

    up to 560/520 MB/s

  • 1 TB

    up to 560/500 MB/s

  • 512 GB

    up to 560/500 MB/s

  • 256 GB

    up to 530/400 MB/s

  • 128 GB

    up to 560/380 MB/s

4K Random Read/Write (IOmeter)
  • 2 TB

    up to 90,000/85,000 IOPS

  • 1 TB

    up to 85,000/85,000 IOPS

  • 512 GB

    up to 80,000/85,000 IOPS

  • 256 GB

    up to 45,000/70,000 IOPS

  • 128 GB

    up to 55,000/65,000 IOPS

Terabytes Written (TBW)
  • 2 TB

    1,120 TBW

  • 1 TB

    560 TBW

  • 512 GB

    280 TBW

  • 256 GB

    140 TBW

  • 128 GB

    70 TBW

Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.3 (5 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.

Warranty

Certificate
  • CE/
  • FCC/
  • BSMI/
  • KC/
  • RCM
Warranty
  • Five-year Limited Warranty
Warranty Policy
  • 3 Year By Transcend Warranty Policy.
  • Warranty does not apply when SSD Scope’s lifetime indicator displays 0% within the warranty coverage.

System Requirement

Operating System
  • Microsoft Windows 7
  • Microsoft Windows 8
  • Microsoft Windows 10
  • Linux Kernel 2.6.31 or later
Note
  • Please make sure that your computer has a M.2 slot.

Technology

TRIM & NCQ Command
S.M.A.R.T.
DDR3 DRAM Cache
Advanced Garbage Collection
DevSleep Mode
RAID Engine
LDPC Coding
